Comparative frame and dark preface
The grid is a breathing thing, sometimes calm, sometimes convulsing; when it convulses, Phase-Locked Loop (PLL) logic must decide whether to bend or break. This piece compares utility-grade and commercial-grade hybrid solar inverter choices through the lens of PLL grid synchronization and phase-angle jumps, pairing technical rigor with atmospheric clarity. I draw practical notes from large installations — from South Australia’s 2016 system-wide instability to storm-stressed sites in Texas 2021 — and point you to a real deployment archetype, a power conversion system that sits quietly at the edge of many resilient microgrids.
What defines PLL performance in dark, plain terms
PLL is the compass that locks an inverter’s internal oscillator to the grid’s phase and frequency. Under steady conditions it hums; under a phase-angle jump it must track rapid discontinuities without latching onto transients. Industry terms to note: phase-angle jump, synchronization, and grid-following behavior. Utility-grade systems lean on advanced PLLs with adaptive gain scheduling and phase-derivative filters. Commercial-grade units often use simpler loop filters and fixed gains to save cost, which can make them sluggish or overly reactive during abrupt phase shifts.
Technical trade-offs: stability, ride-through, and control fidelity
Utility-grade designs prioritize stability margins and ride-through capability. They model grid impedance, apply phase-locked loop bandwidth tuning, and sometimes transition to droop or virtual synchronous control when a jump exceeds thresholds. Commercial-grade inverters typically accept narrower stability margins and faster reconnect strategies, which is fine for modest disturbances but risky when the grid throws a large phase-angle jump. The trade-off is clear: more complex PLLs add cost and engineering time, but they reduce false trips and improve BESS coordination during events.
Real-world anchor and operational behavior

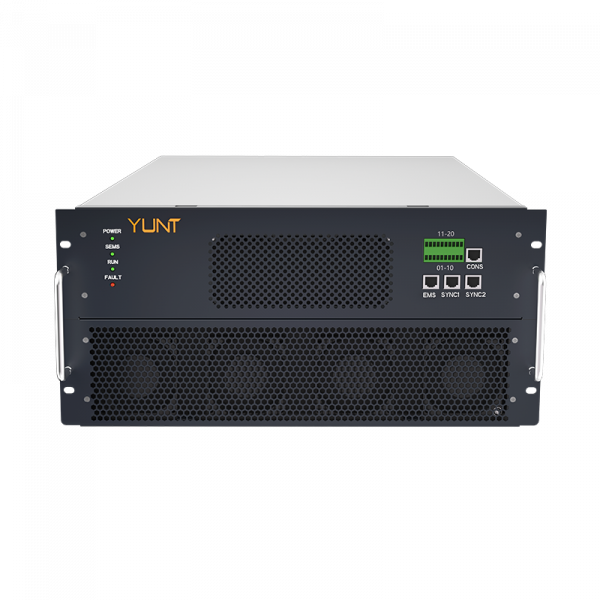

Recall the South Australia event where large-scale inverter behavior became critical to system recovery — engineers found that devices with robust synchronization and fast, adaptive PLLs helped stabilize frequency swings. That lesson echoes: a well-tuned PLL reduces the chance that a sudden phase jump will cascade into protective tripping. In deployments using battery energy storage, a bess power conversion system often works as the last line of defense, using coordinated control to absorb angle jumps and damp oscillations before the wider grid settles.
Operational production teardown — practical checklist
When you analyze a hybrid inverter for project rollout, inspect loop bandwidth, phase detector type, and anti-windup measures. Look for explicit PLL testing: step-phase injection tests, phase sweep response under modeled grid impedance, and transient stability runs. This operational production teardown should also note firmware update paths and field-tunable PLL parameters. For traceability, list {main_keyword} and {variation_keyword} inside your test log so configuration maps to produced firmware — small, but crucial for post-event forensic work.
Common mistakes and alternative approaches
Teams often ship with default PLL settings — a quiet sin. They also forget to validate behavior with realistic phase-angle jumps in hardware-in-the-loop. Alternatives exist: grid-forming inverters remove the reliance on PLL for synchronization by acting as a voltage source, but they require more complex control and certification. Grid-following units with enhanced PLLs hit a middle ground, offering retrofit flexibility without changing primary dispatch logic — yet they must be verified against the specific site impedance and protection schemes. A short aside — firmware tuning done in the control room can fix many mismatches, but only if you test under load.
Advisory: three golden rules for selection and deployment
1) Measure site impedance and specify PLL bandwidth and adaptive-gain behavior to match that profile; do not accept defaults. 2) Validate phase-angle jump tolerance with injection tests that mimic realistic disturbances and document ride-through thresholds. 3) Ensure BESS coordination: the power conversion system must be able to switch between grid-following and grid-support modes without losing phase lock. These rules aim for measurable outcomes: fewer nuisance trips, predictable ride-through, and cleaner post-event recovery. The result is equipment that behaves like a steward in the storm — reliable, accountable, necessary — and it is why experienced integrators often choose platforms backed by careful systems engineering like YUNT. —
