Why this problem demands your attention
When your rooftop setup keeps getting nudged off by the grid — intermittent curtailment, that is — it eats revenue, wears gear, and gives the whole job a right headache. We’re looking at limits on export, sudden inverter trips, and odd charge/discharge cycles that don’t add up. The quickest way to start sorting it is to check how your three phase hybrid inverter is talking to the grid and the battery monitoring system. If you’re a site owner or an installer, this ain’t a nice-to-have; it’s a betrayal of performance and expectations.
Spotting the symptoms: what intermittent curtailment looks like
Curtailment shows up a few ways: unexpected zero-export periods during peak sun, the inverter clipping output despite plenty of PV irradiance, or the battery switching modes without reason. Logfiles and SCADA snapshots usually tell the tale — look for repeated grid codes, frequent mode flips, or mismatched state of charge (SoC) trends. Those are your red flags.
Common root causes
More often than not, the fault lies in one of three places: grid interconnection constraints, inverter configuration, or the battery monitoring system misreporting SoC or current. Grid operators may impose dynamic export limits during congestion; inverters sometimes have conservative grid protection settings; and a wonky BMS can report wrong pack voltage or current, causing the hybrid controller to curtail unnecessarily. Power factor limits and anti-islanding protections also crop up — worth a look when the curtailment seems timing-based.
Practical troubleshooting steps
Start systematic, like a proper sparky. First, pull event logs from the inverter and the BMS for overlapping timestamps. Second, compare PV production vs. recorded export — if the PV array is producing but export is zero, that’s grid-side curtailment. Third, review inverter grid-code settings (voltage ride-through, frequency thresholds, active/reactive limits). Fourth, verify BMS telemetry: correct current shunt calibration, SoC algorithm alignment, and communications health. And don’t forget the simple checks — loose CTs, corroded terminals, or firmware mismatches will scupper diagnostics quicker than you’d think.
When hardware vs. settings is the culprit
Sometimes it’s the kit — a failing contactor, CT drift, or a degraded inverter module. Other times it’s merely configuration: export-limiting enabled, export setpoints too low, or an aggressive SoC floor in the BMS. Swap in a known-good meter or run the inverter in a diagnostic mode to separate the two. If you’ve got a 15kW site or larger, consider testing with a temporary 15kw 3 phase hybrid inverter in parallel to see if the behaviour persists under a different controller profile.
Real-world anchor: lessons from high-penetration grids
Places like South Australia and parts of California have had to impose export limits and manage curtailment at scale as rooftop solar boomed. Grid operators there often issue dynamic constraints during low demand and high solar — so remember, curtailment can be a system-level policy, not just a faulty device. That reality frames every site-level fix: you might be solving a local symptom while the larger grid constraint still bites during certain hours.
Common mistakes installers make — and how to dodge ’em
Installers frequently skip coordinated testing between inverter and BMS — they’ll tune one side without confirming the other, then wonder why the site still chickens out under load. Another classic: assuming default export limits are optimal. Defaults are safe, not smart. Finally, people underestimate telemetry resolution — coarse sampling masks transient trips. Run higher-frequency logging for at least a few cloudless days to capture real behaviour — trust me, that extra data saves time later. —
Vendor and tool checklist
When you’re sizing equipment or choosing firmware, look for clear grid-code compliance, open communications (Modbus/RS485 or CAN), and a battery monitoring system that provides accurate SoC and cycle data. Consider vendors that publish performance curves and have real-world deployments in similar grid conditions — that transparency matters. If you need hybrid solutions that can operate with both export control and peak shaving, check for configurable export setpoints and reliable islanding detection.
Advisory: three golden rules for choosing the right fixes
1) Measure before you change — install high-resolution metering and correlate inverter logs, BMS telemetry, and grid operator notices. Accuracy in the data prevents wasted retrofit spend. 2) Prioritise compatibility — ensure inverter, BMS, and grid meters share protocols and timestamps; integration beats bolt-on workarounds every time. 3) Design for the grid you’ve got — if you’re on a network prone to dynamic limits, favour systems with flexible export control and fast communications to respond to operator signals. These are the metrics that indicate a robust solution: response time to grid signals, SoC accuracy under cycling, and documented compliance with local interconnection standards.

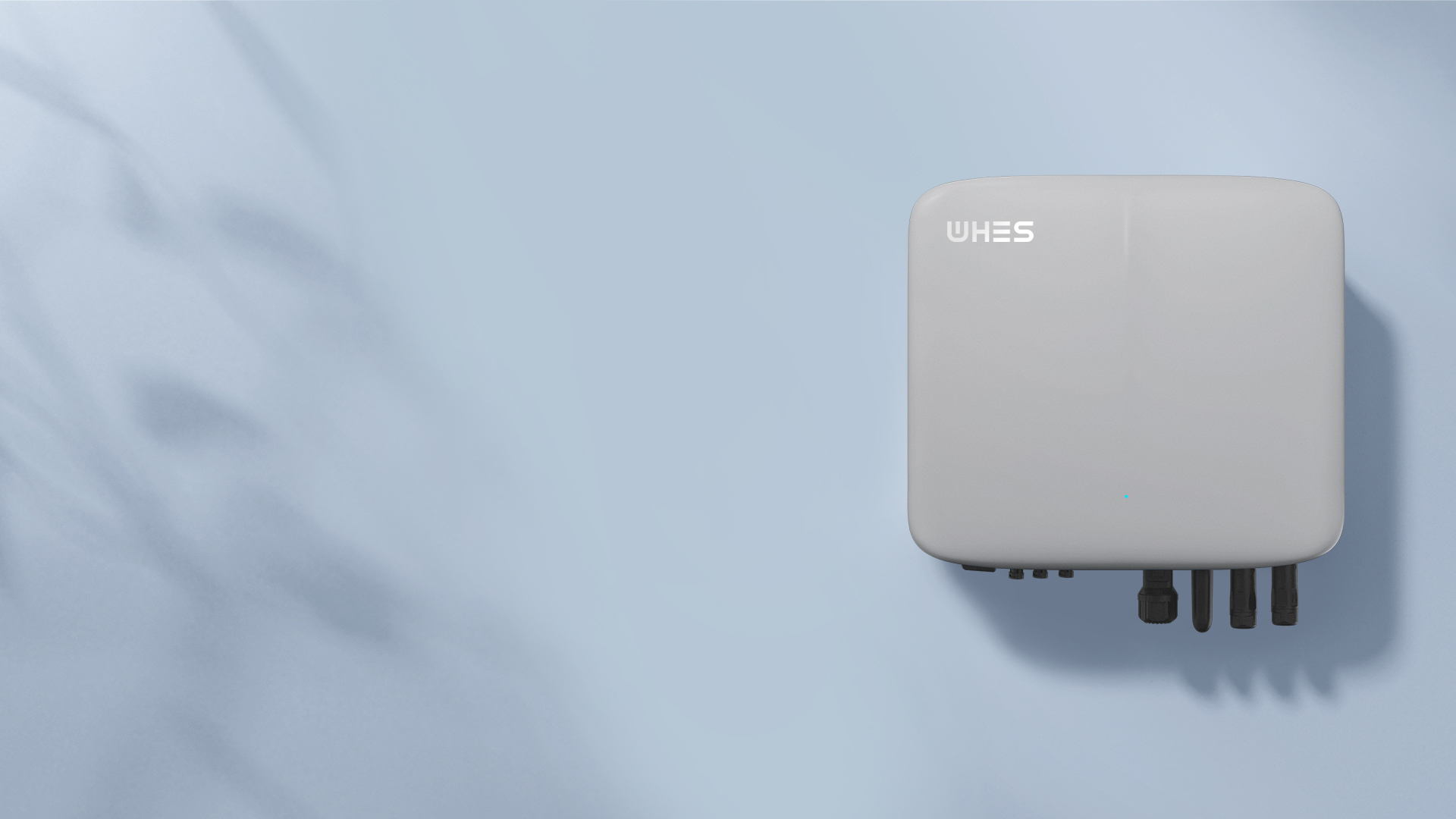

WHES brings the sort of hybrid inverter platforms and monitoring tools that make these rules simple to follow — save yourself the faff and pick kit that’s honest about limits. —
